Product Description:

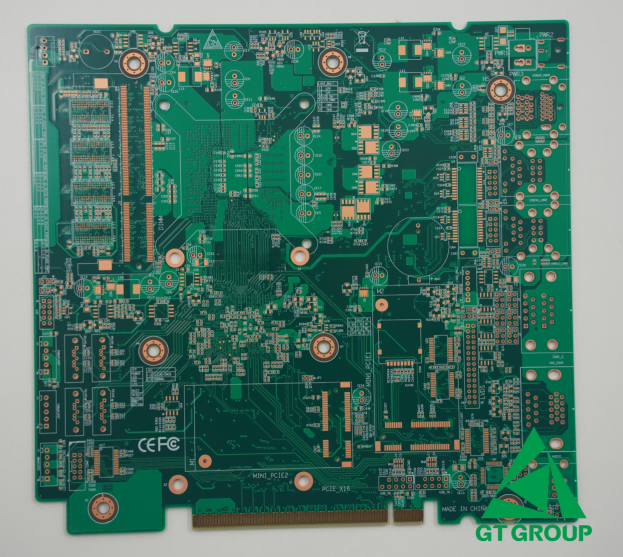

A 10-layer, 1 oz rigid PCB is a high-performance circuit board with 10 conductive copper layers and a standard copper thickness of 1 ounce on each layer. This type of board is used in advanced electronics where high density, reliability, and signal integrity are essential.
The term "10-layer" refers to the number of conductive copper layers. These layers are stacked and separated by insulating materials (dielectrics) like FR-4 (fiberglass-epoxy laminate). The stack-up of these layers is carefully designed to optimize performance. A typical configuration might include:
Signal Layers: These layers carry data and signals between components. With 10 layers, designers have ample space to route complex circuits, reducing signal congestion and allowing for high-density component placement.
Power and Ground Planes: Dedicated layers for power and ground provide a stable and low-impedance path for current, which is crucial for high-speed digital circuits. They also act as a shield to minimize electromagnetic interference (EMI) and help with heat dissipation.
Technical Parameters:
| Product item |
10 layer rigid PCB board |
| Board Thickness |
FR4 Tg150 1.6mm |
| Processing Technology |
Impendace control, golden finger |
| Solder Mask Color |
Geen soldermask+ white silkscreen |
| Standard Testing |
IPC Class 2 |
| Minimum Hole Size |
0.2mm |
| Pcba Service |
SMD SMT DIP Component Assembly |
| Minimum Line Space |
3mil (0.075mm) |
| Min Hole Size |
0.2MM |
Support and Services:
Our Product Technical Support and Services for the Heavy Copper PCB include:
- Expert consultation on design and manufacturing considerations
- Assistance with material selection and specifications
- Guidance on meeting industry standards and regulations
- Troubleshooting and resolution of technical issues
- Customization options to meet specific requirements
